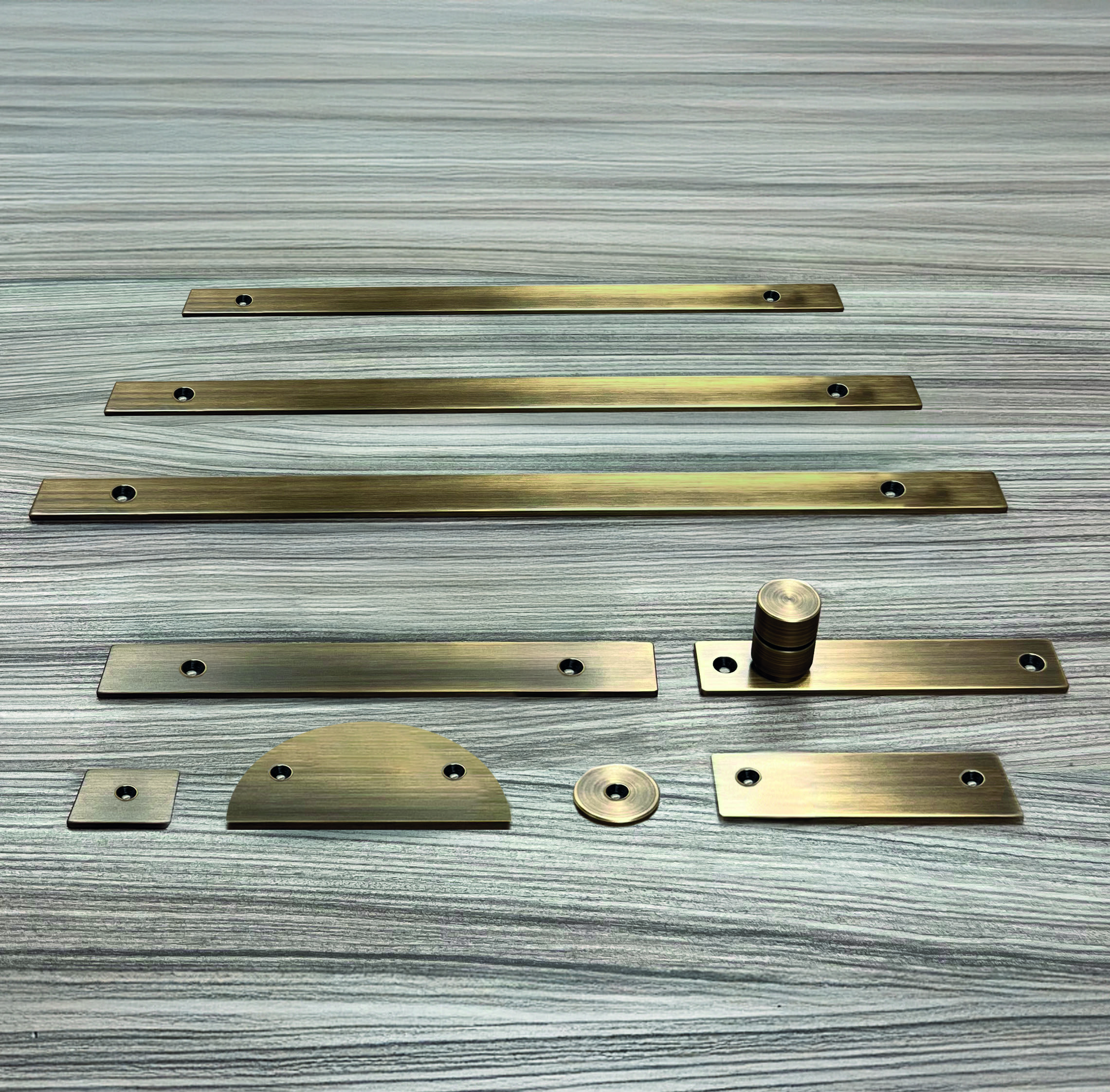

BackplatesClick to enlarge

Clemo + Finch

Backplates

Clemo + Finch

Key specifications

  • a comprehensive range of backplates
  • to suit all diameter bar handles, cups and knobs
  • select from a range of 7 finishes
  • colours to complement the range of Quooker boiling water taps
  • please add the finish code when ordering
Enquire about this product

Product codes & finishes

Select and quote the product code when ordering.

Backplate For Closed Cup
codecentreswidthheight
RBP76-76mm110mm53mm
RBP160-160mm210mm53mm
Backplate For Open Cup
codecentreswidthheight
BP76-76mm100mm45mm
BP160-160mm200mm45mm
Backplate For Knobs
codewidth
BP-S32-32mm
BP-S35-35mm
BP-S38-38mm
Backplate For Knobs
codediameter
BP-R32-32mm
BP-R35-35mm
BP-R38-38mm
Backplate For Knobs
codeitemlengthwidthcentres
BP-S130R-b/plate for knob, face-fix, off-centre hole130mm--
Backplate For Bar Handles
codeitemlengthwidthcentres
BP16-128-b/plate for 12.5mm or 16mm bar203mm25mm128mm
BP16-160-b/plate for 12.5mm or 16mm bar235mm25mm160mm
BP16-192-b/plate for 12.5mm or 16mm bar267mm25mm192mm
BP16-224-b/plate for 12.5mm or 16mm bar299mm25mm224mm
BP16-288-b/plate for 12.5mm or 16mm bar363mm25mm288mm
BP16-384-b/plate for 12.5mm or 16mm bar459mm25mm384mm
BP16-608-b/plate for 16mm bar683mm25mm608mm
BP19-384-b/plate for 19mm bar473mm32mm384mm
BP19-608-b/plate for 19mm bar697mm32mm608mm
BP22-288-b/plate for 22mm bar401mm44mm288mm
BP22-832-b/plate for 22mm bar945mm44mm832mm
