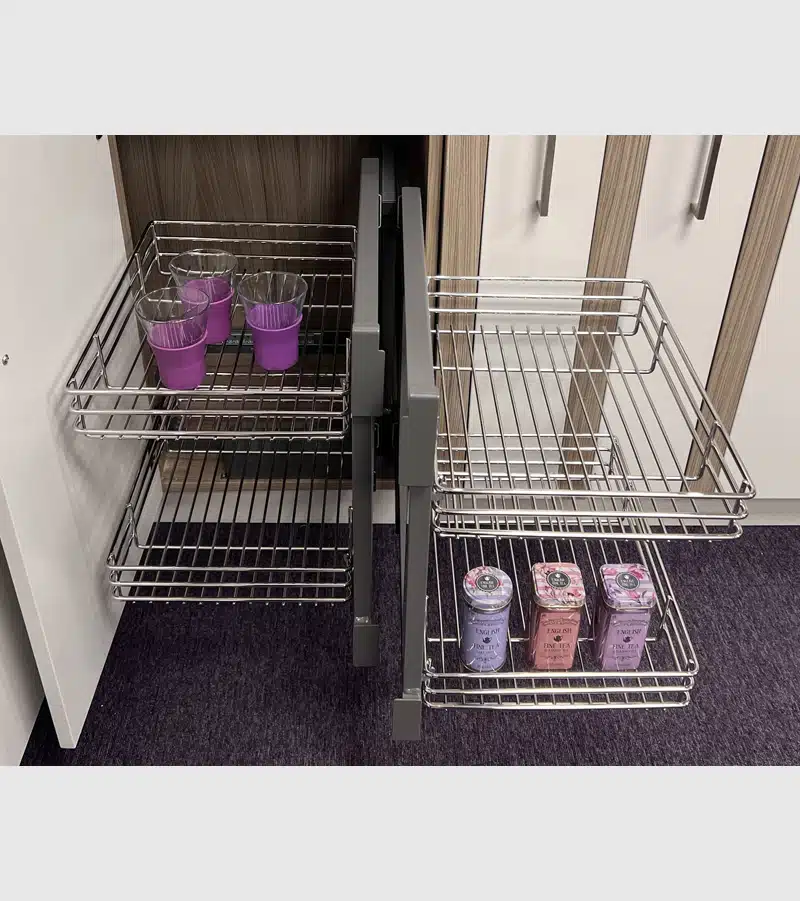

Sige Classic Easy Access Corner Solution

Classic

Key specifications

un-handed mechanism for LH or RH cabinet
corner mechanism for hinged door
all 4 baskets come out of the unit for easy access
soft-close, plus soft-stop traverse kit to cushion left to right movement of mechanism
64kg gross weight loading
mechanism depth 500mm
minimum installation depth 503mm
mechanism height 560mm
will work with a corner post - max. 70mm
basket size for 400mm door 260 x 420mm
basket size for 450mm door 300 x 420mm
basket size for 500mm door 350 x 420mm
basket size for 600mm door 430 x 420mm
WHEN CALCULATING THE APERTURE YOU MUST ALLOW FOR THE PROJECTION OF THE HINGE ARM

Enquire about this product

Product codes & finishes

Select and quote the product code when ordering.

door width	min. aperture	handing	inst. depth	unit size	code
400mm	355mm	RH/LH	503mm	800-900mm	46.OR40.C
450mm	395mm	RH/LH	503mm	800-900mm	46.HR45.C
500mm	445mm	RH/LH	503mm	900-1000mm	46.UR50.C
600mm	525mm	RH/LH	503mm	1000-1200mm	46.ZR60.C
