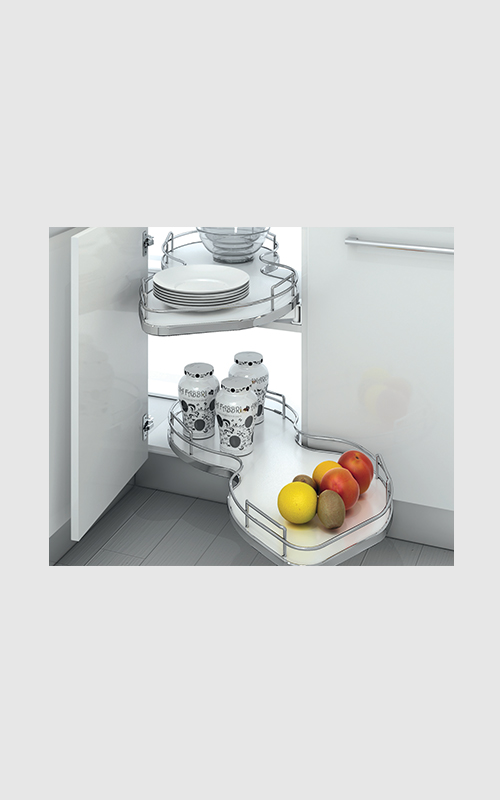

Sige Classic Nuvola

Classic

Key specifications

dual motion swing out corner solution for hinged door
single rail
bottom tray fixes to base panel, upper tray fixes to unit shelf
20kg weight loading on each tray
minimum internal installation depth of 495mm
85° minimum door opening required
maximum hinge protrusion of 20mm if fixing door hinge to centre post
optional 9mm spacer available for use with an in-frame door
to suit 400, 450, 500 and 600mm door widths
mechanism and soft-close adaptor pack available as optional extra. For use with cabinet without shelf

Enquire about this product

Product codes & finishes

Select and quote the product code when ordering.

door width	min. aper.	handing	inst. depth	unit size	code
400mm	360mm	RH	495mm	800mm	371400D12
400mm	360mm	LH	495mm	800mm	371400S12
450mm	410mm	RH	495mm	900mm	371450D12
450mm	410mm	LH	495mm	900mm	371450S12
500mm	460mm	RH	495mm	900 - 1000mm	371500D12
500mm	460mm	LH	495mm	900 - 1000mm	371500S12
600mm	560mm	RH	495mm	1000mm	371600D12
600mm	560mm	LH	495mm	1000mm	371600S12
