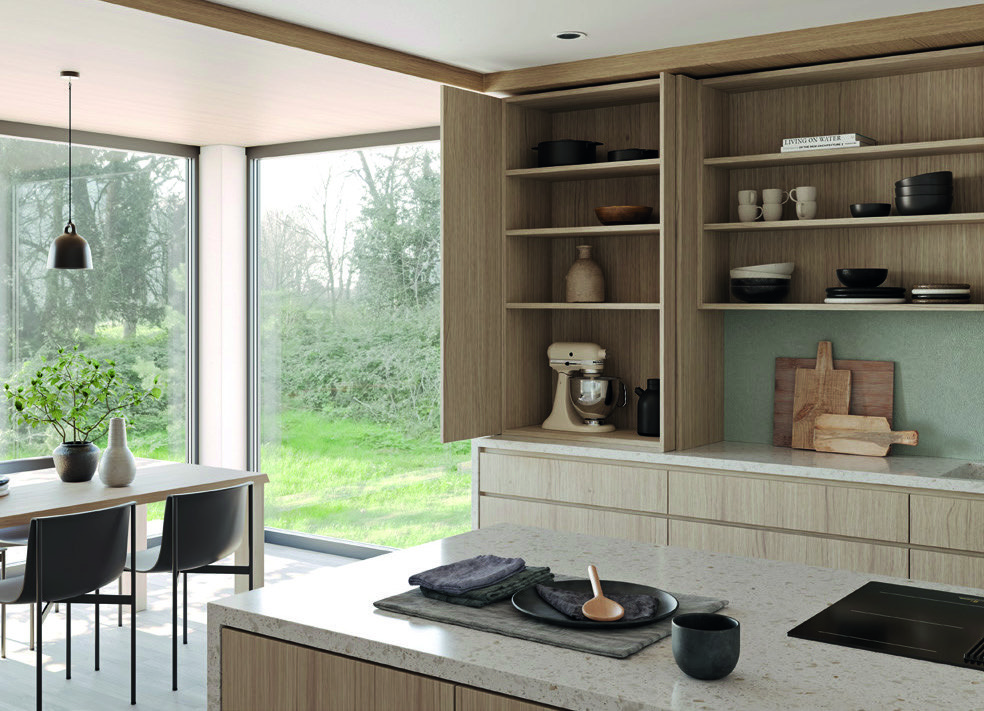

Exedra Gravity IN Soft-Close Pocket Door System
Pocket & Concertina Door SystemsKey specifications
- suitable for worktop height doors from 1100mm
- Gravity IN giving automatic retraction into the pocket using a gentle push
- no cables, tie rods or springs
- for door heights from 1100mm to 3000mm
- for door widths from 300mm to 900mm
- for door thickness from 16mm to 30mm
- maximum door weight 40kg **
- available with nickel or titanium hinges
- push-to-open or soft-close hinge kit available
- easy adjustment
- fits to cabinet side
- door vertical adjustment +4/-1mm
- door horizontal adjustment ±2mm
- door front adjustment ±4mm
- customised to your bespoke requirements
- made to order
Product codes & finishes
Select and quote the product code when ordering.
| item | height | handing | hinge colour | code |
|---|---|---|---|---|
| IN short soft-close | 1100-1599mm | LH | nickel | VE55GRAIS1600SN |
| IN short soft-close | 1100-1599mm | RH | nickel | VE55GRAID1600SN |
| IN short push-to-open | 1100-1599mm | LH | nickel | VE55GRAIS1600PN |
| IN short push-to-open | 1100-1599mm | RH | nickel | VE55GRAID1600PN |
| IN short soft-close | 1100-1599mm | LH | titanium | VE55GRAIS1600ST |
| IN short soft-close | 1100-1599mm | RH | titanium | VE55GRAID1600ST |
| IN short push-to-open | 1100-1599mm | LH | titanium | VE55GRAIS1600PT |
| IN short push-to-open | 1100-1599mm | RH | titanium | VE55GRAID1600PT |
| IN tall soft-close | 1600-3000mm | LH | nickel | VE55GRAIS3000SN |
| IN tall soft-close | 1600-3000mm | RH | nickel | VE55GRAID3000SN |
| IN tall push-to-open | 1600-3000mm | LH | nickel | VE55GRAIS3000PN |
| IN tall push-to-open | 1600-3000mm | RH | nickel | VE55GRAID3000PN |
| IN tall soft-close | 1600-3000mm | LH | titanium | VE55GRAIS3000ST |
| IN tall soft-close | 1600-3000mm | RH | titanium | VE55GRAID3000ST |
| IN tall push-to-open | 1600-3000mm | LH | titanium | VE55GRAIS3000PT |
| IN tall push-to-open | 1600-3000mm | RH | titanium | VE55GRAID3000PT |
| roller guide for framed wooden doors /pair | - | - | - | YE55KIT0040 |
| top mount connector | - | - | - | YE55KIT0002 |
| side mount connector | - | - | - | YE55KIT0006 |
| double pocket connector | - | - | - | YE55KIT0004 |
| front cover strip, grey | - | - | - | YE55KIT0201 |
| front cover strip, black | - | - | - | YE55KIT0202 |
| front cover strip, white | - | - | - | YE55KIT0203 |
