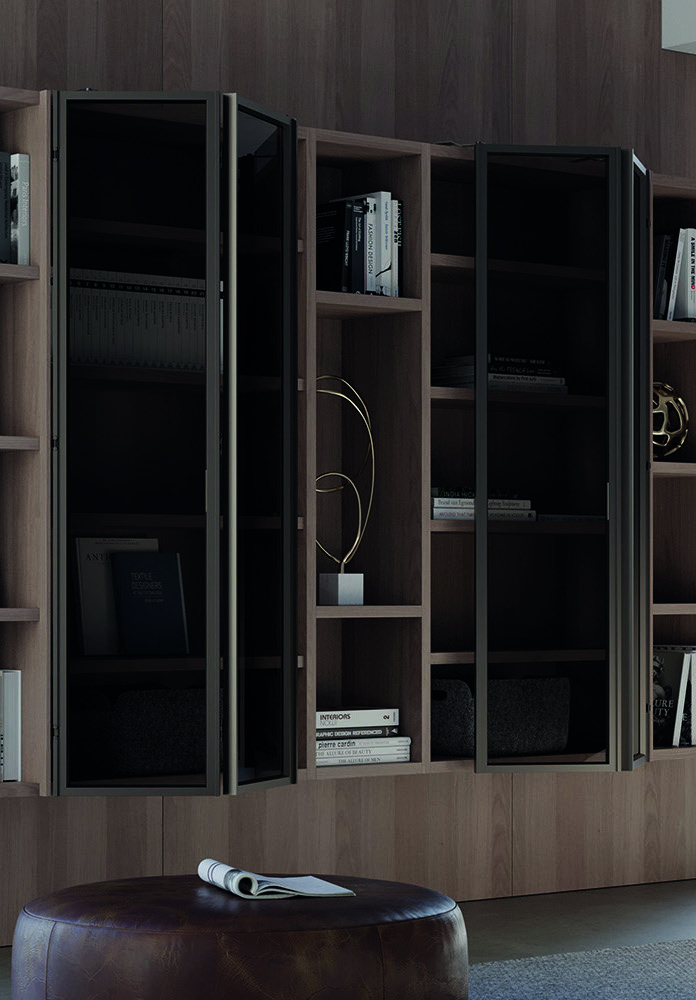

Folder Concertina Door System

Key specifications

• the combination of a hinged system with a sliding system
• options of 90' or 180' opening
• can be fixed to the top of the cabinet for use with tall units, wardrobes or wall units
• maximum weight for two doors 40kg for Folder 90 and 50kg for Folder 180
• can be fixed under the base panel for base height units
• allows optimal access to the internal space
• also suitable for furniture recessed into the wall or as room dividing doors
• use with Conecta or Series M hinges
• adjustable opening and closing speed
• fully adjustable in 3 directions
• for door heights from 600-3000mm
• for door widths from 350-750mm
• maximum door thickness 25mm
• system height 35mm
• for use with wooden doors or aluminium profile doors
