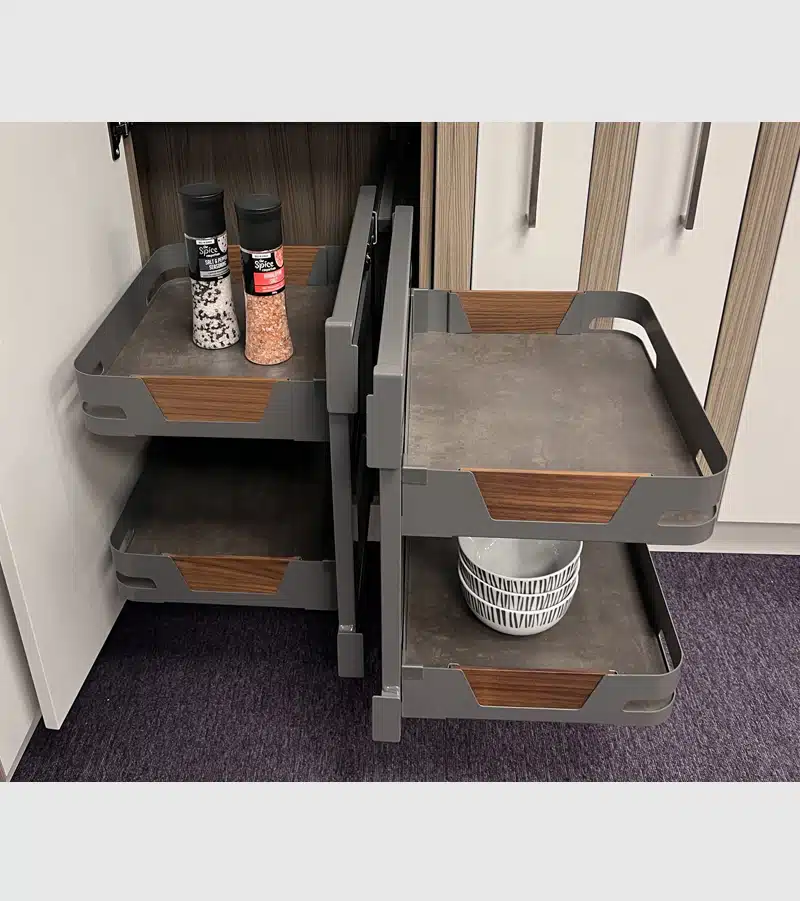

Sige Fusion Easy Access Corner Solution

Fusion

Key specifications

un-handed mechanism for LH or RH cabinet
corner mechanism for hinged door
all 4 baskets come out of the unit for easy access
soft-close, plus soft-stop traverse kit to cushion left to right movement of mechanism
64kg gross weight loading
mechanism depth 500mm
minimum installation depth 503mm
mechanism height 560mm
80mm from back of basket to front edge of cabinet when open
basket can be purchased with walnut, glass or oak inserts
also available without inserts to enable customisation
will work with a corner post - max. 70mm
basket size for 400mm door 260 x 420mm
basket size for 450mm door 300 x 420mm
basket size for 500mm door 350 x 420mm
basket size for 600mm door 430 x 420mm
WHEN CALCULATING THE APERTURE YOU MUST ALLOW FOR THE PROJECTION OF THE HINGE ARM

Enquire about this product

Product codes & finishes

Select and quote the product code when ordering.

door width	min. aper.	handing	unit size	code
				walnut insert	glass insert	oak insert	no insert
400mm	355mm	RH/LH	800-900mm	46.OR40.ME.WAL	46.OR40.ME.GLA	46.OR40.ME.OAK	46.OR40.ME
450mm	395mm	RH/LH	800-900mm	46.HR45.ME.WAL	46.HR45.ME.GLA	46.HR45.ME.OAK	46.HR45.ME
500mm	445mm	RH/LH	900-1000mm	46.UR50.ME.WAL	46.UR50.ME.GLA	46.UR50.ME.OAK	46.UR50.ME
600mm	525mm	RH/LH	1000-1200mm	46.ZR60.ME.WAL	46.ZR60.ME.GLA	46.ZR60.ME.OAK	46.ZR60.ME
