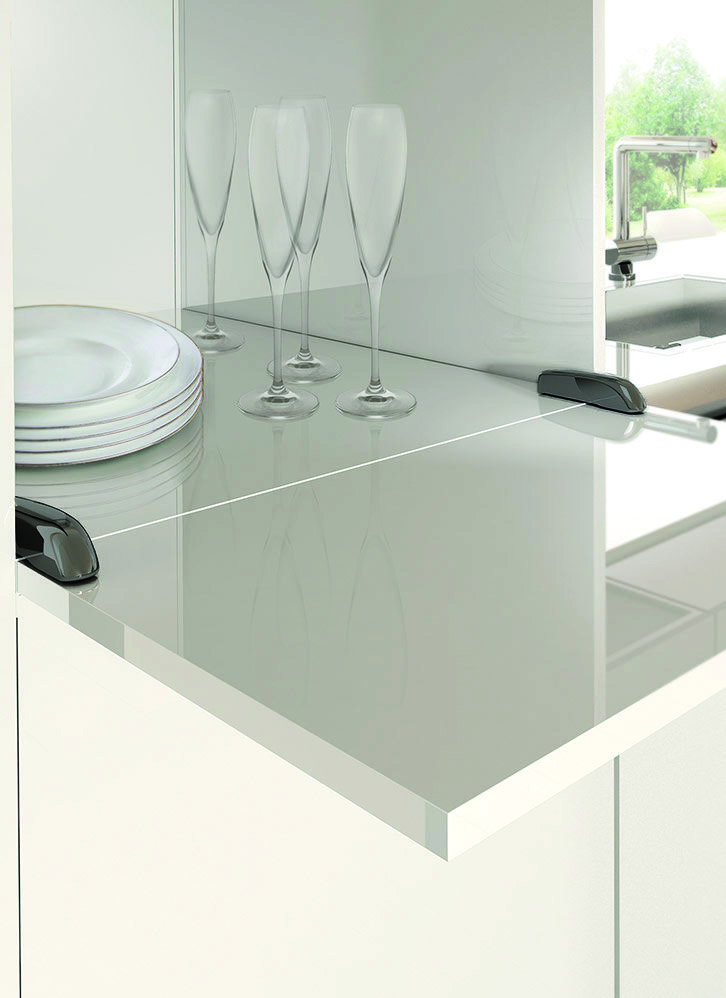

Salice Pacta
Runners, Flap Stays & HingesKey specifications
- 90° opening compact hinge for fall flaps
- flush alignment of door and cabinet
- side, front and vertical door adjustment
- decelerated opening
- sprung closing action
- 25kg load capacity per door
- for door heights from 280 - 400mm
- for door weights from approx. 2kg - 6kg
- central hinge for cabinets over 900 mm width to be used
- not suitable for in-frame doors
- with grey covers
- 35mm cup x 13mm drilling depth
- includes hinges, mounting plates, Smove and screws
Product codes & finishes
Select and quote the product code when ordering.
| item | code |
|---|---|
| hinge - for door from 2-4kg | FRBLFEXWSN9 |
| hinge - for door from 4-6kg | FRBLFEXISN9 |
| cover-grey (pk2) | SRXB78AMXXXNF |
| central hinge-grey cover cap | FRCK59RXXXM |
