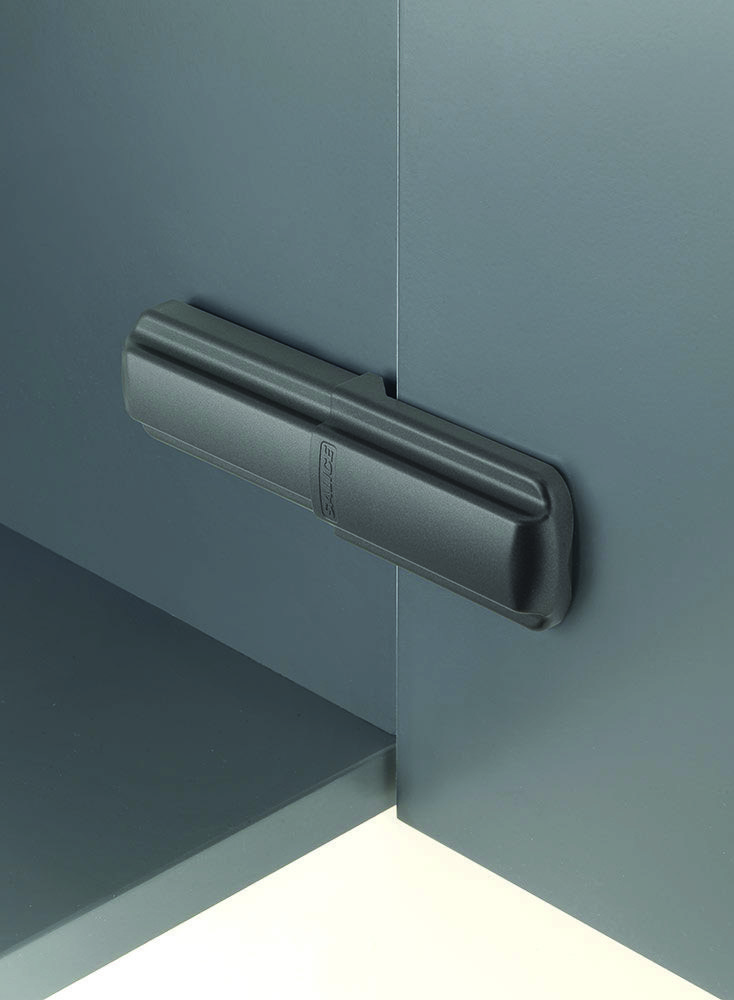

Salice Silentia+ Series 200 94° Full Overlay Lapis Hinge
Runners, Flap Stays & HingesKey specifications
- 94° full overlay clip-on hinge
- adjustable integrated soft-close mechanism
- with two covers that move simultaneously with the hinge
- for doors of 18mm to 35mm thickness
- 35mm cup x 15.5mm drilling depth
- half overlay variations available
- covers in graphite grey
Product codes & finishes
Select and quote the product code when ordering.
| item | code |
|---|---|
| nickel hinge | C21BAE9 |
| cabinet side cover - graphite | P7A0A05 |
| door side cover - graphite | P7SXA05SN |
| in-line mounting plate - wood screw | BAP3R39 |
| in-line mounting plate - euro screw | BAPGR39 |
