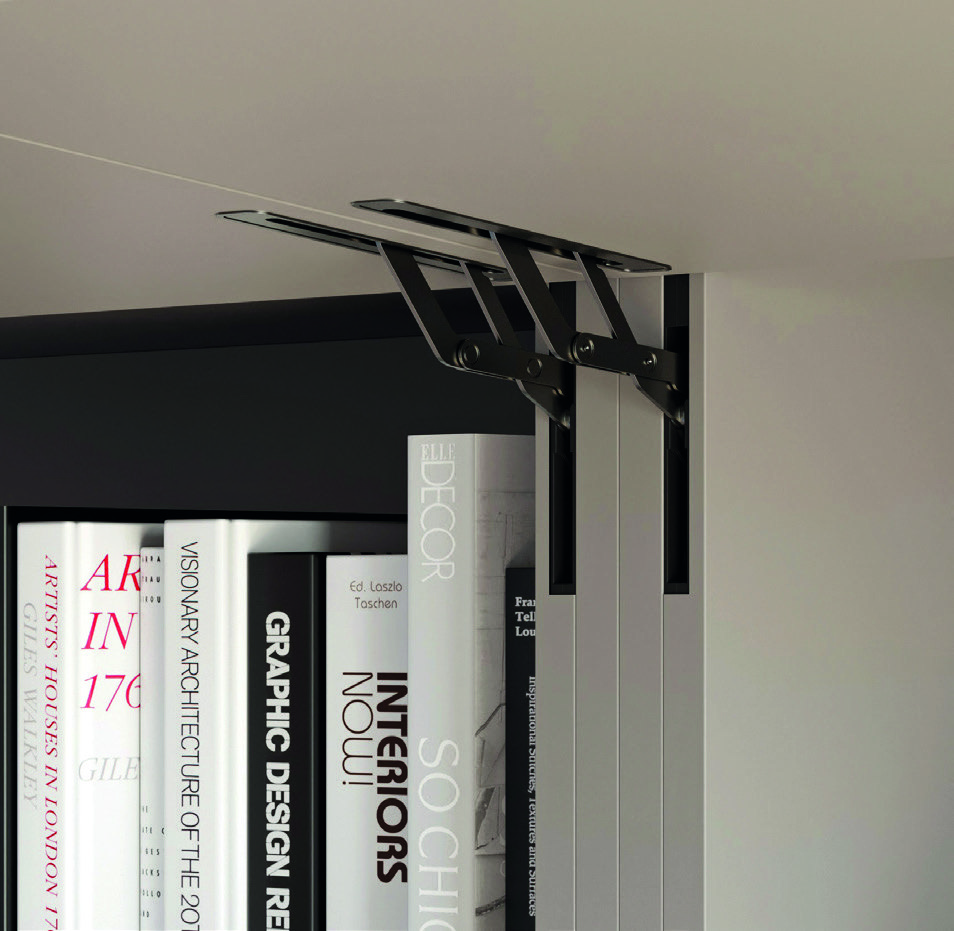

Salice Tilt Up

Runners, Flap Stays & Hinges

Key specifications

concealed mechanism for flap doors
compact design with a thickness of only 12 mm,13.5 mm with cover
three mounting solutions: external with cover, recessed into the cabinet side, flush-mounted with cover
for door thickness 18-22mm
for door height 230 - 480mm
for door weight from 1-17kg
3-way door adjustment for precise alignment
adjustable and decelerated opening and closing movement
wide range of covers available in different finishes
sold as a pair including fixing screws

Enquire about this product

Product codes & finishes

Select and quote the product code when ordering.

code	description	strength	weight	finish
FTAXFSS1SN6	Tilt up lifting system	F1	1-4kg	titanium
FTAXFSS1SN9	Tilt up lifting system	F1	1-4kg	silver
FTAXFSS2SN6	Tilt up lifting system	F2	2-8kg	titanium
FTAXFSS2SN9	Tilt up lifting system	F2	2-8kg	silver
FTAXFSS3SN6	Tilt up lifting system	F3	4-10kg	titanium
FTAXFSS3SN9	Tilt up lifting system	F3	4-10kg	silver
FTAXFSS4SN6	Tilt up lifting system	F4	6-17kg	titanium
FTAXFSS4SN9	Tilt up lifting system	F4	6-17kg	silver
STEX78A0XXXXF	Tilt external cover kit	-	-	metal black
STEX78A1XXXXF	Tilt external cover kit	-	-	signal white
STEX78ALXXXXF	Tilt external cover kit	-	-	desert taupe
STEX78AMXXXXF	Tilt external cover kit	-	-	dusty grey
STEX78ASXXXXF	Tilt external cover kit	-	-	silk grey
STEX78AZXXXXF	Tilt external cover kit	-	-	traffic black
STWX78A0XXXXF	Tilt flush cover kit	-	-	metal black
STWX78A1XXXXF	Tilt flush cover kit	-	-	signal white
STWX78ALXXXXF	Tilt flush cover kit	-	-	desert taupe
STWX78AMXXXXF	Tilt flush cover kit	-	-	dusty grey
STWX78ASXXXXF	Tilt flush cover kit	-	-	silk grey
STWX78AZXXXXF	Tilt flush cover kit	-	-	traffic black
