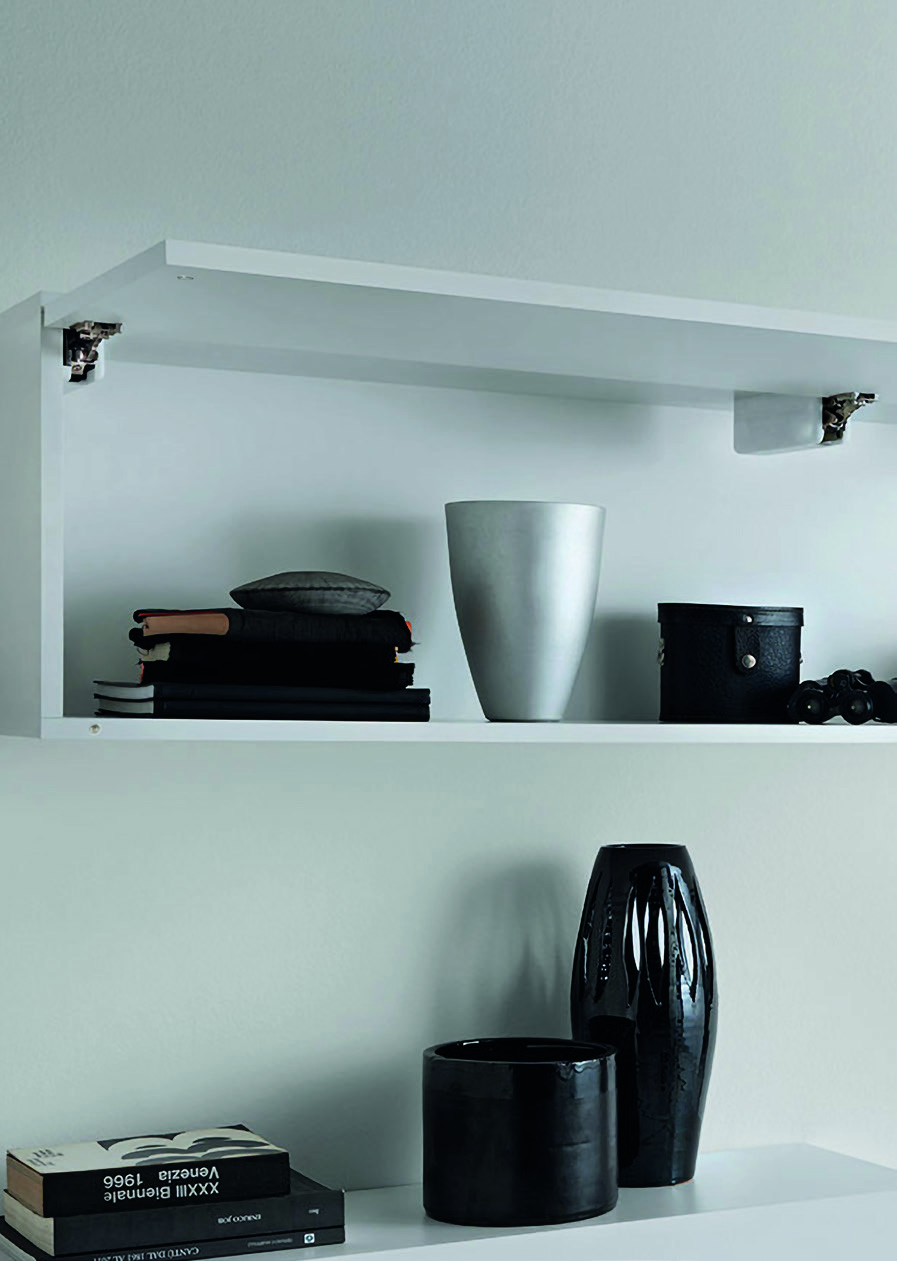

Salice Wind Push
Runners, Flap Stays & HingesKey specifications
- compact lift system for flap doors
- 85° opening
- 94° opening without removable angle restrictor
- door will stay open in any position
- retaining catch and release device required
- 10mm diameter hole x 40mm deep drilling for release device
- 15mm diameter hole for adjustable retaining catch on door side
- for door heights from 200 - 600mm
- for door weights from approx. 2kg - 6kg
- with grey covers
- 35mm cup x 12mm drilling depth
- includes hinges, fixing plates, screws and template
Product codes & finishes
Select and quote the product code when ordering.
| item | code |
|---|---|
| hinge - for door from 1-5kg | FRALFEPWSN9 |
| hinge - for door from 2-7kg | FRALFEPDSN9 |
| hinge-for door from 2-10kg | FRALFEPISN9 |
| cover-grey | SRXA78AMSNXNF |
| retaining catch | DP28SN9 |
| adjustable retaining catch | DP39XXG |
| release device - grey | DPMSNG |
